LUNAFLEX®

LUNAFLEX® technology

Kao's interface control technology

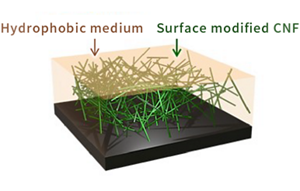

Kao has succeeded in uniformly dispersing CNF in resins and solvents by modifying the hydrophilic CNF surface to a hydrophobic surface using its core technology of interface control. The technology involving interface control is called the "dual graft system" and is based on structural forecasting using quantum chemical calculations.

lunaflex_about_technology_01_en

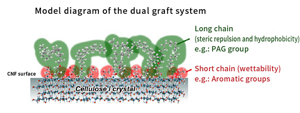

Using this "dual graft system" two kinds of modification groups selected based on wettability and steric repulsion are bonded on the CNF surface. Modifying the CNF surface to a hydrophobic surface utilizing small modification group weight, enables the development of the natural properties of CNF.

lunaflex_about_technology_01_en_1

Features of LUNAFLEX®

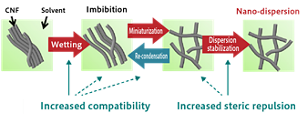

LUNAFLEX®, a new material developed by Kao, uses interface control technology to achieve uniform dispersion in resins and solvents,  which was considered difficult to apply. We customize the appropriate modification group for the resin or solvent in which CNF is mixed(blended), and the wettability steric repulsion is controlled so that the CNF and resin can be easily combined.Modified CNF can be custom-desined according to customer specifications (resins and solvents).

lunaflex_about_technology_03_en

Product video

LUNAFLEX® solutions

LUNAFLEX®, a new material developed by Kao, uses interface control technology to achieve mixing with plastics and other materials, which was difficlut to apply

自由度の高いデザイン設計がしたい【寸法サイズの安定化】

加工精度を上げたい【溶媒の増粘】

材料を強くしたい【機械的物性の向上】

If you have any questions or require additional information about LUNAFLEX®, please use the form below.
