Asphalt, Civil Engineering & Construction

Kao's plant-derived asphalt rejuvenator, DANOX RAP Series

top_danox_pc_01_en

Effective even for deteriorated reclaimed asphalt that has undergone repeated recycling, contributing to improved durability of reccycled asphalt pavement.

Kao's DANOX RAP Series is a new rejuvenator that supports longer pavement life and more advanced resource circulation.

Jump Buttons
Full-bleed H2 Gradient Banner

Features of the DANOX RAP Series

Effective even for deteriorated reclaimed asphalt that has undergone repeated recycling, contributing to improved durability of recycled asphalt pavement.Kao's DANOX RAP Series is a new rejuvenator that supports longer pavement life and more advanced resource circulation.

DANOX RAP Series is Kao's rejuvenator that promotes the rejuvenation of deteriorated asphalt properties. Asphalt becomes hard and brittle after long-term exposure to ultraviolet rays, heat, and other factors. DANOX RAP Series acts in two ways: it replenishes components lost through long-term service and disperses components that have increased or aggregated. In this way, it promotes the rejuvenation of deteriorated asphalt properties and improves the durability of recycled asphalt pavement, contributing to longer pavement life and effective resource use.

Benefits of Introduction

When asphalt pavement is recycled repeatedly, its properties become difficult to restore even when  conventional rejuvenator are added. However, adding the DANOX RAP Series rejuvenates the condition of asphalt even after repeated recycling, enabling it to be used as pavement material.

danox_feature_01

The pavement containing the additive becomes stronger.

Normally, recycled asphalt pavement using aged reclaimed asphalt pavement tends to show reduced durability. However, the addition of the DANOX RAP series improves water resistance and makes cracking less likely to occur.

danox_feature_03

Maintains good performance after repeated recycling
Effective even for aged pavement subjected to repeated recycling

Normally, repeated recycling of asphalt pavement makes it increasingly difficult to rejuvenate asphalt properties, even when conventional rejuvenators are used. However, with the addition of DANOX RAP series, the asphalt properties can be rejuvenated even after repeated recycling, allowing the pavement to continue being used as a paving material.

danox_feature_02

Uses plant-derived raw materials

While many conventional rejuvenators are manufactured from petrochemical raw materials, DANOX RAP series uses plant-derived raw materials as its main ingredients, enabling a reduction of CO₂ emissions through its use.

Full-bleed H2 Gradient Banner

Solutions of DANOX RAP Series

danox_challenge_01

Challenge

Transparent 01
01.

Asphalt properties deteriorate through repeated recycling

Solution

Improves suitability for repeated recycling

DANOX RAP series works multifacetedly on deteriorated asphalt and rejuvenates asphalt properties with a small amount of addition. It also promotes the rejuvenation of asphalt properties even in pavement materials that have undergone repeated recycling. As a result, it supports the recycling of repeatedly reclaimed pavement materials and contributes to the advancement of resource circulation.

Reference Test Data

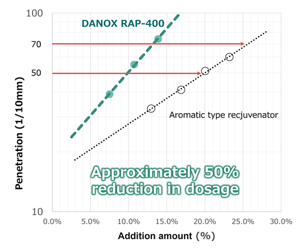

<Penetration test comparison>

danox_solution_en_01-1-1

Evaluation Conditions

Penetration of aged asphalt = 15 (1/10mm)

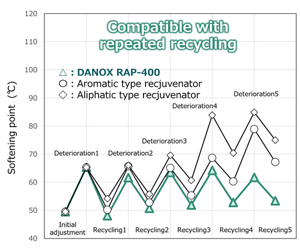

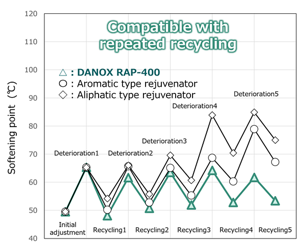

<Softening point measurement comparison>

danox_solution_en_01-2-1

Evaluation Conditions

Initial adjustment: accelerated aging at 163°C for 5 hours to adjust the asphalt penetration to 20.

Accelerated aging of asphalt: 120°C for 65 hours

Regeneration of aged asphalt (rejuvenated to a penetration of 70): rejuvenated using only a rejuvenator

danox_challenge_02

Challenge

Transparent 01
02.

Recycled pavement faces challenges in long-term durability compared with pavement mainly composed of new materials

Solution

Improved water resistance and crack resistance

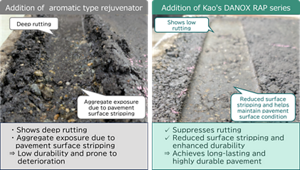

Kao's R&D has confirmed that recycled asphalt pavement with DANOX RAP Series exhibits better water resistance and reduced cracking compared with conventional rejuvenators. DANOX is considered to improve pavement durability by enhancing the adhesion between asphalt and aggregate, thereby suppressing water penetration.

danox_solution_en_03-2-4

Reference Test Data

  • Water immersion durability

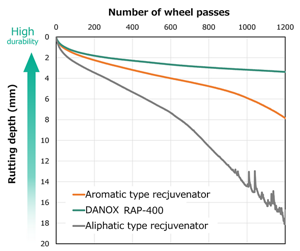

<Water immersion durability test comparison>

danox_solution_en_03-3-1

Evaluation Conditions

Water-immersion steel wheel tracking test

Temperature: 60°C / Condition: water immersion / Load: 715 N / Wheel: steel wheel / Number of passes: 1,200

  • Fatigue crack resistance

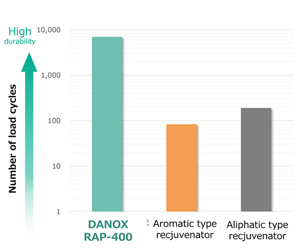

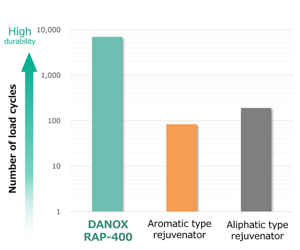

<Fatigue crack resistance comparison>

danox_solution_en_03-4-1

Evaluation Conditions

Repeated bending test

Temperature: 20°C / Loading speed: 30 mm/min / Loading method: Load control / Load: 100 N

Evaluation Conditions

Reclaimed aggregate content: 50%; penetration of aged asphalt: 20 (1/10 mm); design penetration: 70

Dosage of recycling additives: aromatic type 13%, aliphatic type 16.8%, and DANOX RAP-400 6.0%, based on aged asphalt

danox_challenge_03

Challenge

Transparent 01
03.

There is a growing demand not only for improved quality but also for reduced environmental impact.

Solution

LCA reduction is possible

DANOX RAP series uses plant-based raw materials as its main ingredients, providing not only high performance but also environmental benefits.Based on LCA evaluation, the environmental value of recycled asphalt  pavement can be quantitatively demonstrated by showing its CO₂ emission reduction effect.

Reference Test Data

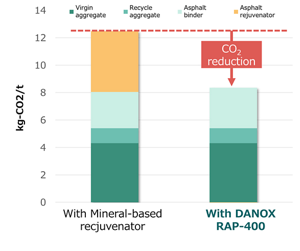

<CO₂ emission factor associated with raw materials for 1 ton of recycled asphalt mixture production>

danox_solution_en_04-1

Calculation Conditions

Mix conditions: Recycled dense-graded asphalt mixture (20), 50% reclaimed material

Common mix composition: No. 6 crushed stone: 14.6%; No. 7 crushed stone: 11.7%; screenings: 6.8%; coarse sand: 6.8%; fine sand: 6.8%; stone dust: 1.9%; reclaimed aggregate: 48.6%.

Mineral-oil-based rejuvenator: Straight asphalt: 2.46%; rejuvenator: 0.44%. DANOX RAP-400: Straight asphalt: 2.75%; rejuvenator: 0.15%.

Reference

​Publisher: Japan Road Association / ​Publication: Guidebook for Calculating Environmental Load Reduction in Pavement

Full-bleed H2 Gradient Banner

Case Studies of DANOX RAP Series

List of Initiatives

List of Initiatives

Company Name Plant / Office Name Initiative
SEIKITOKYU KOGYO CO., LTD. Tekkou Asphalt Mixture Plant Recycled asphalt mixture
SEIKITOKYU KOGYO CO., LTD. Hakodate Asphalt Mixture Plant Recycled asphalt mixture
